Vertical Trailer TMR Mixers

Mix and feed out faster

1.After stirring the feed is more fluffy;

2.Greatly reduce the chance of caking feed;

3.Weighing more accurate;

4.Structure is more simple;Tractor driven, easy to move

5.Since auger speed is slow, foe the destruction of small feed

6.Easily handle large round or square bales of hay;

7.Since feed on the barrel sidewall pressure is small, the wear rate is much lower mixer;

8.Facts have proved that 85% of farmers have switched to vertical feed mixers.


Product Detiles

Auger number11122
Blade materialCarbon tungsten alloyCarbon tungsten alloyCarbon tungsten alloyCarbon tungsten alloyCarbon tungsten alloy
Blade number5 big blades7 big blades9 big blades14 big blades14big blades
Auger rotate speed≧26 round/min≧26 round/min≧26 round/min≧26 round/min≧26 round/min
Weigh sensor3 pieces3 pieces3 pieces4 pieces4pieces
Weigh display control patternAutomaticAutomaticAutomaticAutomaticAutomatic
PTO Minimum Power Requirement60HP90HP90HP120HP140HP
PTO Drive540RPM540RPM540RPM540RPM540RPM
Machine dimensionmachine dimension : 3700*2200*2800mmmachine dimension : 3900*2400*2800mmmachine dimension : 4000mm*2500*2800mmmachine dimension : 6200*2500*2800mmmachine dimension : 6600*2500*2800mm

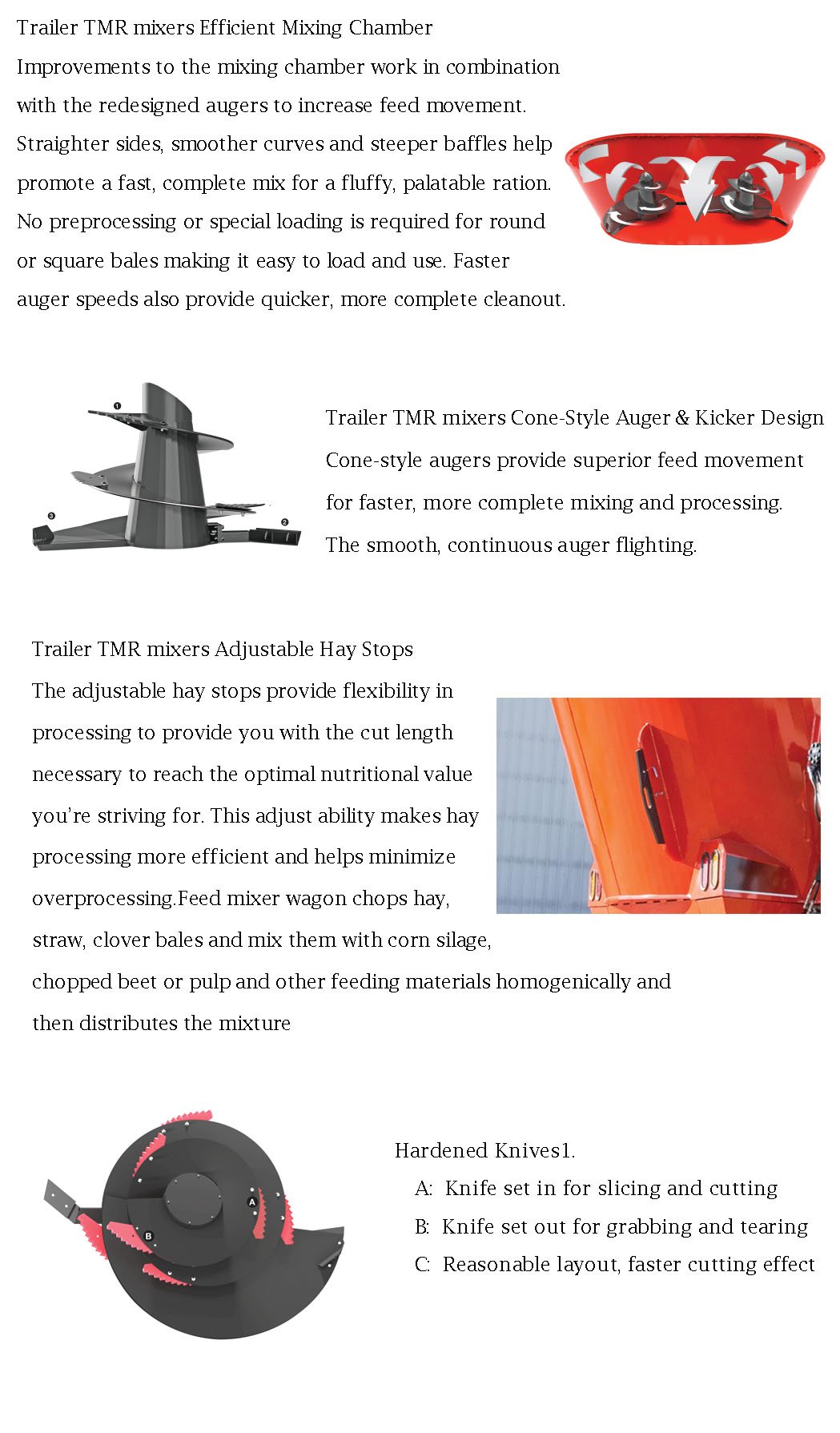

The mixing auger is pto driven, the door and discharge are hydraulically operated.

The large screw auger design enables the processing of many varieties of big square or round bales, allowing them to be combined with silage and other commodities.
