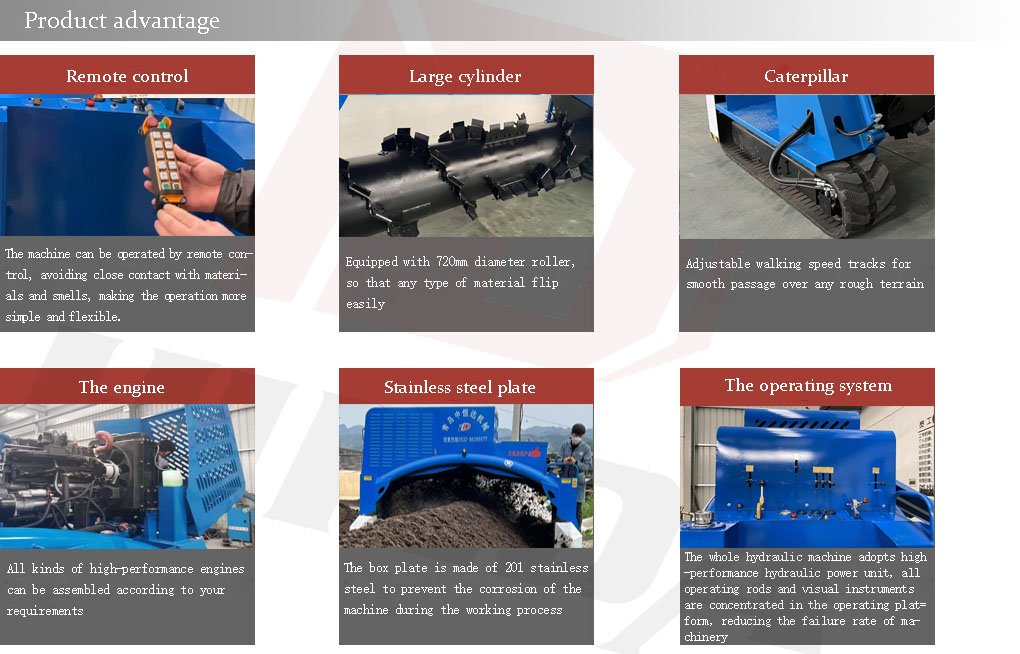

1. Composting machine with compact design, small space occupation and flexible use
2. High-end diesel engine with stable performance and low energy consumption
3. Adjustable rotor height
4. Fully hydraulic drive, low maintenance cost
5. Self-propelled composting turner, no tractor needed-best space utilization
6. Easy to transport and can be used anytime and anywhere
7. The production capacity is about 800 cubic meters per hour
| Working data | Equipment specification | Under working conditions | Under transportation conditions | ||
| Maximum width of allowable accumulation | 3M | Roller diameter | 730mm | ||
| Maximum height of allowable stacking | 1.4M | Allowable ground height difference | 0-200mm | ||
| Roller rotation speed | 250-400rpm | Length of equipment | 3460mm | 3460mm | |
| Rubber track width | 2×0.33m | The device width | 2380mm | 1650mm | |
| Fuel tank capacity | 50L | Height of equipment | 2350mm | 2330mm | |
| Maximum diameter of accumulated particles allowed | 250mm | Equipment weight | 3200kg | ||
| Working longitudinal toss distance | 2-3m | Maximum processing capacity | 800m³/h | ||
| Turning radius | 1800mm | Maximum surface pressure | 0.59kg/㎡ | ||
| Forward velocity | 0-10m/min | The speed of the retreat | 0-10m/min | ||
| Engine data | |||||
| Engine power | 75KW | ||||
| The battery | 24v | ||||
| Other | 1、Can be mountedspray device and automatic remote control device 2、Cummins and Japanese Yama engines are available | ||||
ZHONGHONGDA compost turners introduce oxygen into the compost pile, helping to speed the decomposition process.
Today, it represents the ideal solution for ensuring perfect aerobic rotting conditions. As compost windrows with a width of up to 3m have particularly good properties for the production of high-quality compost products, M30A has been precisely adapted to this windrow width. With a turning capacity of more than 800 m³/hour and a windrow cross-section of up to 3.5 m3/running meter, even performance freaks will get their money's worth with this compost turner.
self-propelled compost turner boasts optimal mixing capability, simple operation via hand-held control unit, and minimal space requirements. High-quality, low-noise hydraulic drives on the track and on the turning roller keep noise generation to an absolute minimum.
Whether for organic or green waste, agricultural waste, sewage sludge or even palm oil residues and sugar cane production, you will be making a decision that delivers efficient windrow composting. Equally, the self-propelled windrow turner is also extremely capable in the fields of soil remediation and industrial mixing of different substrates. With the throughput rates it achieves, you will be amazed at the productivity!
