The cail spacing of cattle is generally 40-60cm. There were 8 positions in each group of adult cattle self-locking neck stocks, each 6 meters long and 75mm apart. It can prevent cattle from snatching food and guide cattle to eat enough feed to ensure nutrition. It also immobilizes the cow for veterinary inspection and breeding operations.
Thick vertical rod：φ42×2.5
Action rod:φ42×2.5
Butterfly clamp lock: δ4
Applications of cow headlock :cattle farms
1. The cow headlock is made of Q235-B material. After welding, the whole is hot-dip galvanized, and the galvanized layer is ≥75μm;
2. After welding, the overall hot-dip galvanizing, the surface of the galvanized necklock is smooth, without drips, roughness, zinc thorns, no peeling, no leakage plating, and no residual solvent slag;
3. Equipped with necklocks, in the open state, the cattle can eat freely;
4. The headlock can simultaneously lock or release the cows feeding within the range of 18-24 meters.
5. It can lock or release all feeding cows at the same time, or lock one or several cows individually;
6. The contact part of the necklock movable rod and the locking mechanism is equipped with acetylene belt damping to reduce noise; at the same time, it is equipped with damping rubber pads to further reduce noise;

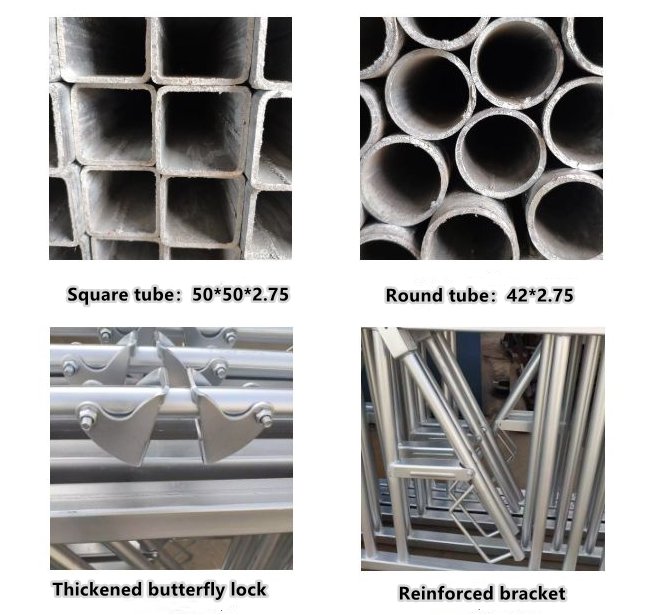

| Name | Type |
| Thick vertical rod | φ42×2.5 |
| Action rod | φ42×2.5 |
| Fixed rod | φ42×2.5 |
| Thin vertical rod | φ32×2.5 |
| Overarm rod | 50×50×2.75 |
| Butterfly clamp lock | δ4 |
| Action rod weight | φ18 |
