Horizontal mixer feeders are one of the ideal solutions for small and medium scale farms. Low height structure of the machine makes them suitable for most farms.

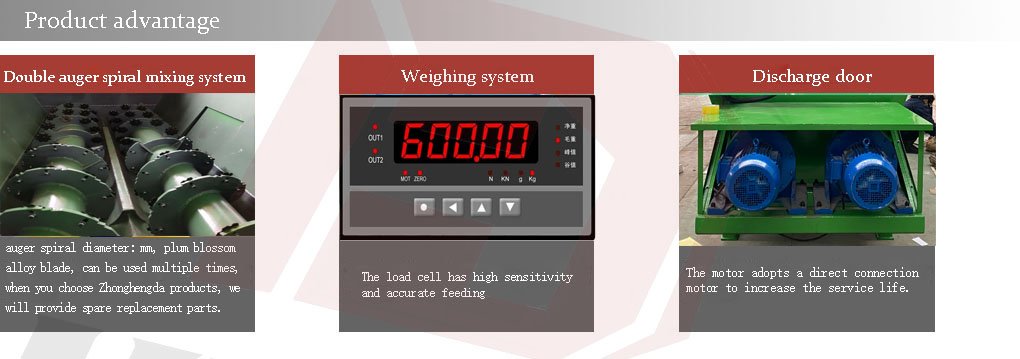

1. The unique double auger zigzag design improves the auger efficiency and mixing effect, and the mixing is even;
2. Special customized plum alloy blades make the feed cut quickly.
3. Convenient and fast maintenance
4. High-quality mixing, fast time and low labor cost
5. Stationary TMR feed mixer, can be customized motors, soft start or inverter control panels, and various sizes of unloading belts can be customized
6、horizontal mixer feeders have self hydraulic system and lateral conveyor as standard features. There are also optional features which are loading bucket, weighing system and magnet.
| Type | 9JGW-7 | 9JGW-9 | 9JGW-12 |
| Main reducer motor | GB motor | GB motor | GB motor |
| Auger number | 2 pieces | 2 pieces | 2 pieces |
| Blade thickness | 14mm | 14mm | 14mm |
| Blade number | 132 | 166 | 195 |
| Auger rotate speed | ≧26round/min | ≧26round/min | ≧26round/min |
| Weigh sensor | 4 | 4 | 4 |
| Matched power | Double 11KW+1.5KW Oil pump door motor | Double 15KW+1.5KW Oil pump door motor | Double 18.5KW+1.5KW Oil pump door motor |
| Machine dimension | 4100mm*2200mm*2150mm | 4600*2200*2100mm | 5570mm*2200mm*2450mm |
| Machine weight | 2586kg | 3200kg | 4950kg |
