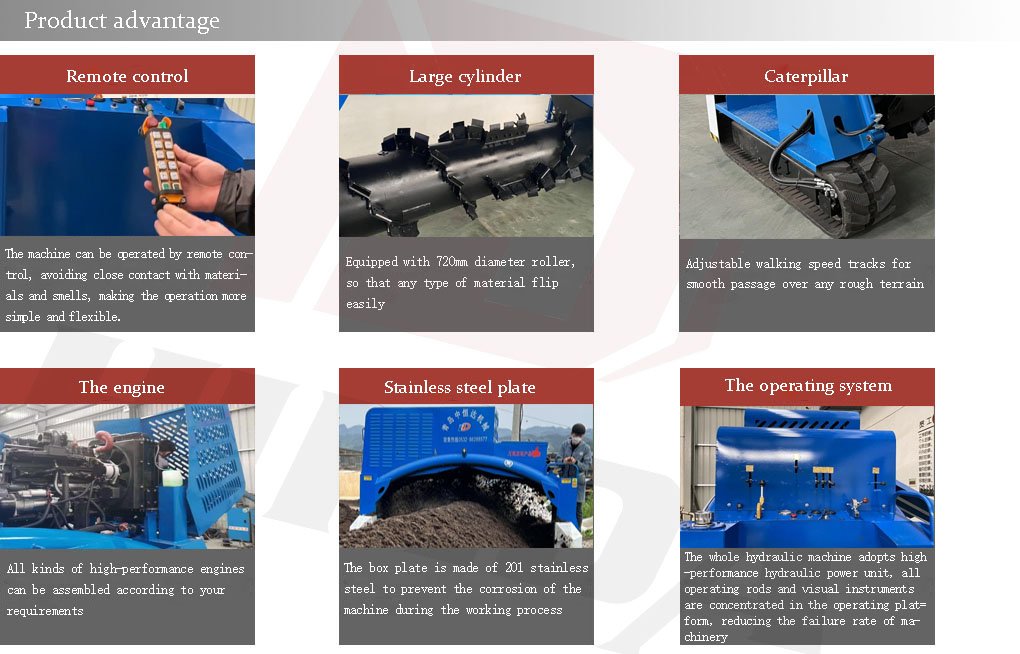

1. Composting machine with compact design, small space occupation and flexible use
2. High-end diesel engine with stable performance and low energy consumption
3. Adjustable rotor height
4. Fully hydraulic drive, low maintenance cost
5. Self-propelled composting turner, no tractor needed-best space utilization
6. Easy to transport and can be used anytime and anywhere
7. The production capacity is about 600 cubic meters per hour
| Working data | Equipment specification | Under working conditions | Under transportati on conditions | ||
| Maximum width of allowable accumulation | 2.6m | Roller diameter | 720mm | ||
| Maximum height of allowable stacking | 1200mm | Allowable ground height difference | 0-200mm | ||
| Roller rotation speed | 250-305rpm | The width of the inner door of the compost machine | 2450mm | ||
| Rubber track width | 2×220mm | The height of the inner door | 1200mm | ||
| Fuel tank capacity | 40L | Length of equipment | 3150mm | ||
| Maximum diameter of accumulated particles allowed | 250mm | The device width | 1900mm | 1450mm | |
| Working longitudinal toss distance | 2-3m | Height of equipment | 2200mm | 2000mm | |
| Maximum processing capacity | 600m³ | Maximum surface pressure | 0.5kg/c㎡ | ||
| Turning radius | 1500mm | Walking speed | 0-10m/min | ||
| Engine data | |||||
| brand | Yunnei brand engine | ||||
| The number of Oil cylinder | 4 | ||||
| The battery | 24v | ||||
| Engine power | 55KW | ||||
Spray device, remote control, power part optional engine brands (China Yuchai engine, Japan Yangma engine, The United States Cummins engine) | |||||
HINDA compost turners introduce oxygen into the compost pile, helping to speed the decomposition process.
Today, it represents the ideal solution for ensuring perfect aerobic rotting conditions. As compost windrows with a width of up to 3m have particularly good properties for the production of high-quality compost products, M30A has been precisely adapted to this windrow width. With a turning capacity of more than 800 m³/hour and a windrow cross-section of up to 3.5 m3/running meter, even performance freaks will get their money's worth with this compost turner.
self-propelled compost turner boasts optimal mixing capability, simple operation via hand-held control unit, and minimal space requirements. High-quality, low-noise hydraulic drives on the track and on the turning roller keep noise generation to an absolute minimum.
Whether for organic or green waste, agricultural waste, sewage sludge or even palm oil residues and sugar cane production, you will be making a decision that delivers efficient windrow composting. Equally, the self-propelled windrow turner is also extremely capable in the fields of soil remediation and industrial mixing of different substrates. With the throughput rates it achieves, you will be amazed at the productivity!
